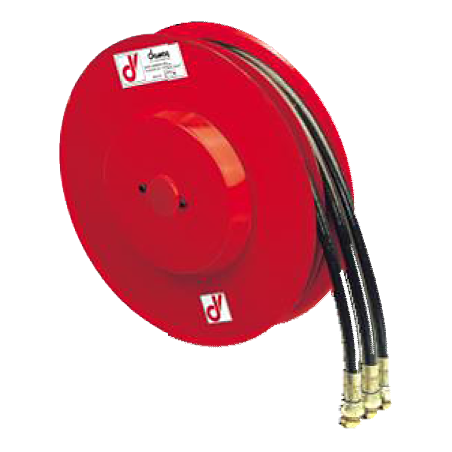

Type A3 - 3 Tuyaux
Enrouleurs Hydraulique :
3 tuyaux
- Pour 1 tuyaux triple avec soudure thermoplastique
- Disponible en version Droite ou Gauche
- Fixation par bride plate
- Auto-enroulement permanent par ressort (tension constante)
DEBIT MAXIMUM L/MIN 40
Convient notamment pour les chariots élévateurs, grues, bras télescopiques, etc...
Debit maximum: 40 l/min
Pression de travail: standard 300 bar / en option 400 bar
Vitesse maximum du tuyau: 30 m/min
Plage de Temperature: -20/+80°C
A3D400=modèle droit/right model A3S400=modèle gauche/left model
|

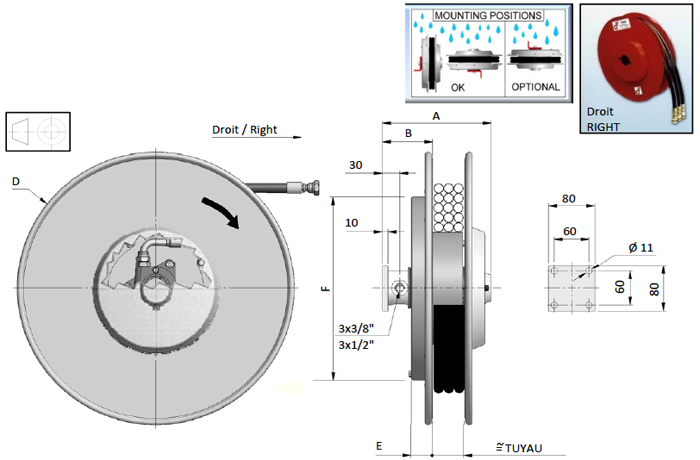

Modèle droit
Right model |
A |
B |
D |
E |
F |
Sans tuyau Without hose |
Ø |
Avec tuyau - with hose |
|||||
|
Long. totale Total length |
Long. utile Usable length |
R7 |
B1 |
B3 |
|||||||||
|
mm |
kg |
XX=R7 |
XX=B1 |
XX=B3 |
|||||||||
|
m |
|||||||||||||
|
A3D296.06.XX |
185 |
87 |
295 |
37 |
272 |
16 |
1/4" |
3,0 |
2,7 |
||||
|
A3D296.08.XX |
5/16" |
2,3 |
2,0 |
||||||||||
|
A3D296.10.XX |
3/8" |
2,3 |
2,0 |
||||||||||
|
A3D296.12.XX |
250 |
127 |
1/2" |
1,5 |
1,2 |
||||||||
|
A3D321.06.XX |
185 |
87 |
325 |
37 |
272 |
17 |
1/4" |
4,0 |
3,7 |
||||
|
A3D321.08.XX |
5/16" |
3,2 |
2,9 |
||||||||||
|
A3D321.10.XX |
3/8" |
3,3 |
3,0 |
||||||||||
|
A3D321.12.XX |
250 |
127 |
1/2" |
2,5 |
2,2 |
||||||||
|
A3D341.06.XX |
185 |
87 |
340 |
37 |
272 |
18 |
1/4" |
5,0 |
4,7 |
||||
|
A3D341.08.XX |
5/16" |
4,2 |
3,9 |
||||||||||
|
A3D341.10.XX |
3/8" |
4,0 |
3,7 |
||||||||||
|
A3D341.12.XX |
250 |
127 |
1/2" |
2,5 |
2,2 |
||||||||
|
A3D370.06.XX |
185 |
87 |
370 |
37 |
272 |
18 |
1/4" |
6,0 |
5,7 |
||||
|
A3D370.08.XX |
5/16" |
5,3 |
5,0 |
||||||||||
|
A3D370.10.XX |
3/8" |
4,5 |
4,2 |
||||||||||
|
A3D370.12.XX |
250 |
127 |
1/2" |
3,5 |
3,2 |
||||||||
|
A3D400.06.XX |
185 |
87 |
400 |
47 |
272 |
19 |
1/4" |
7,3 |
7,0 |
||||
|
A3D400.08.XX |
5/16" |
6,5 |
6,2 |
||||||||||
|
A3D400.10.XX |
3/8" |
5,6 |
5,3 |
||||||||||
|
A3D400.12.XX |
250 |
127 |
1/2" |
4,5 |
4,2 |
||||||||
|
A3D420.06.XX |
185 |
87 |
420 |
47 |
322 |
22 |
1/4" |
8,6 |
8,1 |
||||
|
A3D420.08.XX |
5/16" |
8,0 |
7,5 |
||||||||||
|
A3D420.10.XX |
3/8" |
6,7 |
6,2 |
||||||||||
|
A3D420.12.XX |
250 |
127 |
1/2" |
4,7 |
4,2 |
||||||||
|
A3D470.06.XX |
198 |
97 |
478 |
47 |
322 |
24 |
1/4" |
11,5 |
11,0 |
||||
|
A3D470.08.XX |
5/16" |
10,0 |
9,5 |
||||||||||
|
A3D470.10.XX |
3/8" |
9,5 |
9,0 |
||||||||||
|
A3D 470.12.XX |
250 |
127 |
1/2" |
7,5 |
7,0 |
||||||||
|
Modèle droit
Right model |
A |
B |
D |
E |
F |
Sans tuyau Without hose |
Ø |
Avec tuyau - with hose |
|||||
|
Long. totale Total length |
Long. utile Usable length |
R7 |
B1 |
B3 |
|||||||||
|
mm |
kg |
XX=R7 |
XX=B1 |
XX=B3 |
|||||||||
|
m |
|||||||||||||
|
A3D520.06.XX |
198 |
97 |
520 |
47 |
322 |
28 |
1/4" |
14,5 |
14,0 |
||||
|
A3D520.08.XX |
5/16" |
12,5 |
12,0 |
||||||||||
|
A3D520.10.XX |
3/8" |
11,2 |
10,7 |
||||||||||
|
A3D520.12.XX |
250 |
127 |
1/2" |
9,0 |
8,5 |
||||||||
|
A3D570.06.XX |
198 |
97 |
570 |
47 |
422 |
32 |
1/4" |
17,5 |
17,0 |
||||
|
A3D570.08.XX |
5/16" |
15,5 |
15,0 |
||||||||||
|
A3D570.10.XX |
3/8" |
13,5 |
13,0 |
||||||||||
|
A3D570.12.XX |
250 |
127 |
1/2" |
10,7 |
10,2 |
||||||||
|
A3D600.06.XX |
198 |
97 |
620 |
47 |
422 |
38 |
1/4" |
21,0 |
20,5 |
||||
|
A3D600.08.XX |
5/16" |
17,0 |
16,5 |
||||||||||
|
A3D600.10.XX |
3/8" |
16,0 |
15,5 |
||||||||||
|
A3D600.12.XX |
250 |
127 |
1/2" |
12,5 |
12,0 |
||||||||
|
A3D650.06.XX |
198 |
97 |
650 |
47 |
422 |
44 |
1/4" |
22,5 |
22,0 |
||||
|
A3D650.08.XX |
5/16" |
19,5 |
19,0 |
||||||||||
|
A3D650.10.XX |
3/8" |
17,5 |
17,0 |
||||||||||
|
A3D650.12.XX |
250 |
127 |
1/2" |
14,5 |
14,0 |
||||||||
|
A3D700.06.XX |
198 |
97 |
720 |
57 |
422 |
50 |
1/4" |
27,0 |
26,5 |
||||
|
A3D700.08.XX |
5/16" |
22,0 |
21,5 |
||||||||||
|
A3D700.10.XX |
3/8" |
20,0 |
19,5 |
||||||||||
|
A3D700.12.XX |
250 |
127 |
1/2" |
16,0 |
15,5 |
||||||||
|
A3D800.08.XX |
198 |
97 |
820 |
57 |
532 |
- |
5/16" |
30,0 |
29,0 |
||||
|
A3D800.10.XX |
3/8" |
26,0 |
25,0 |
||||||||||
|
A3D800.12.XX |
250 |
127 |
1/2" |
21,0 |
20,0 |
||||||||
|
A3D900.08.XX |
198 |
97 |
920 |
57 |
532 |
- |
5/16" |
38,0 |
37,0 |
||||
|
A3D900.10.XX |
3/8" |
34,0 |
33,0 |
||||||||||
|
A3D900.12.XX |
250 |
127 |
1/2" |
28,0 |
27,0 |
||||||||
